HES2S-140-A125-DGR
- Medium duty
- Quality dark grey finish
- Hinge is surface mounted on frame/jamb; concealed on door
- Allows installing a hinged door flush with the wall, providing a seamless look

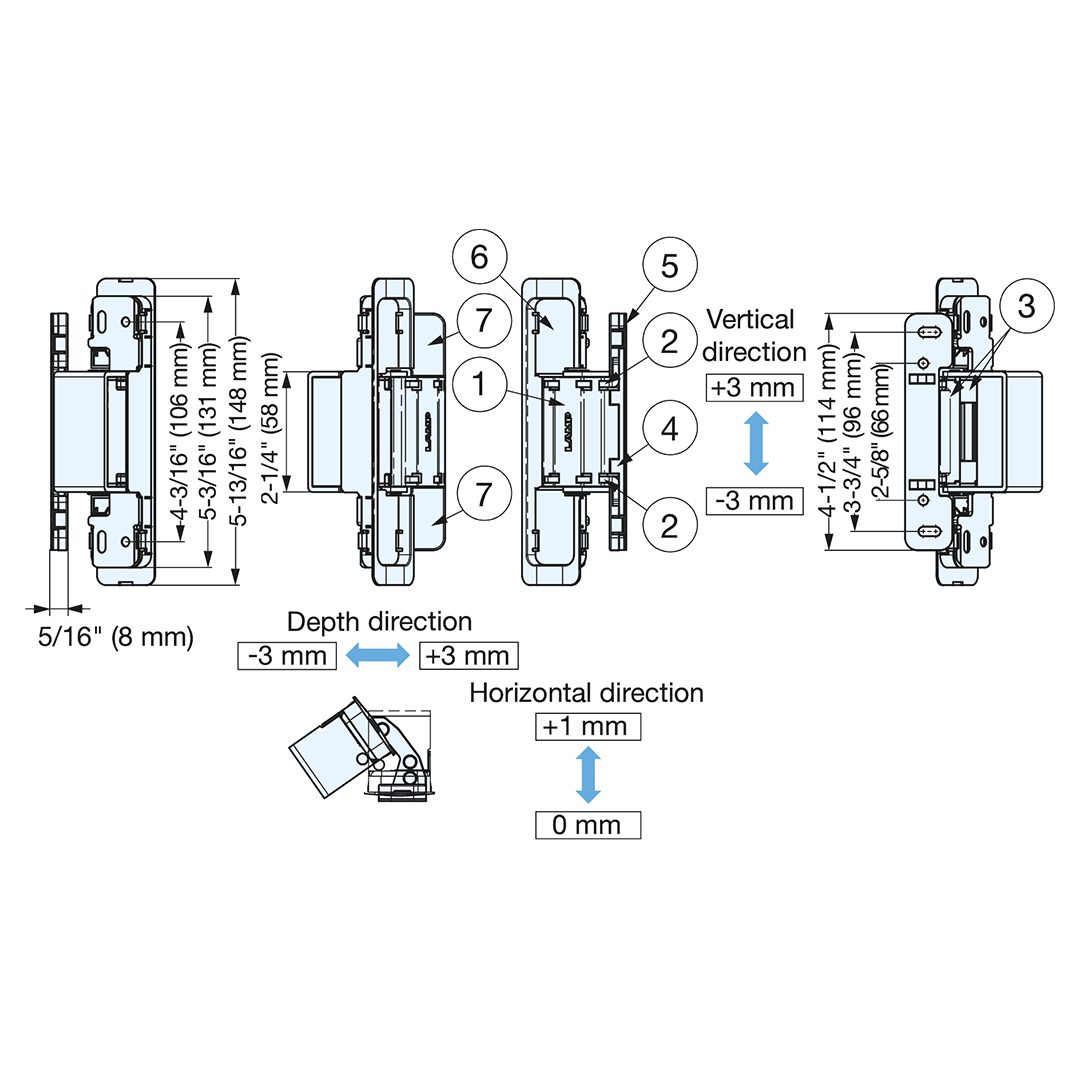

- 3-way adjustment function allows vertical, horizontal and depth adjustment after hinge has been installed
- Easy installation and after-installation adjustment
- Supplied with steel flat head screws
- Cover hides all screw heads for clean appearance
- Door weight: maximum 110 lbs./2pcs; maximum 143 lbs./3pcs
- Door thickness: minimum 1 1/2”
- Door size: maximum width – 35 7/16”; maximum height – 106 5/16”
- Opening angle is limited to 125°. Door stop or angle limiter is required to prevent breakage of the hinges
- The hinge is one piece and cannot be divided between the door and the frame
- Durability: successfully passed 300,000 open/close private cycle tests
