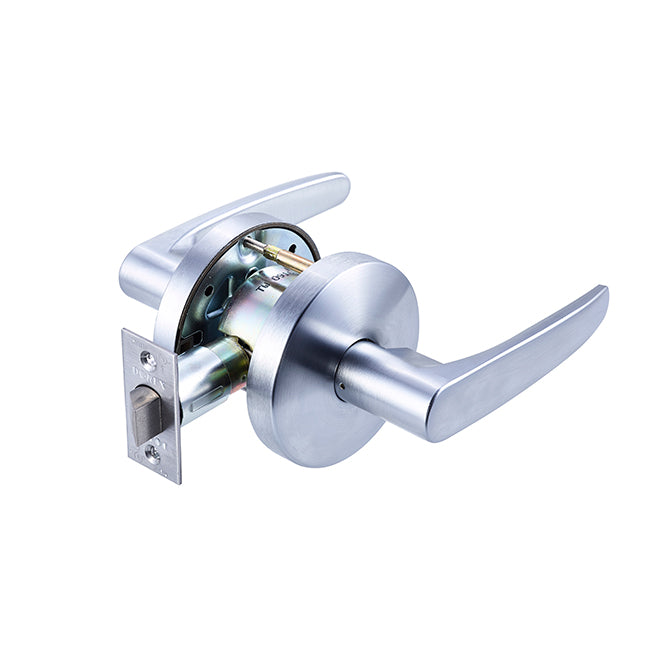

Dorex FS10 C26D Medium-Duty Passage Lever – Satin Chrome

Dorex FS10 C26D Medium-Duty Passage Lever – Satin Chrome

$97.30 CAD
$97.30 CAD
Sale Sold out
Taxes included. Shipping calculated at checkout.
FS10 C26D
  • Passage function suitable for non-locking applications
  • Architectural quality for medium duty commercial applications
  • High quality satin chrome finish
  • For 1 3/8” to 1 3/4” door thickness
  • 2 3/4” backset
  • Optional backsets by special order: 2 3/8”,   3 3/4”, 5”
  • Non-handed/field reversible
  • Removable thru-bolt mounting posts
  • Lever length is approximately 5 1/8”
  • 3 5/16” rosette diameter
  • 1/2” stainless steel latch throw
  • Concealed mounting screws
  • Conforms to ANSI/BHMA A156.2, series 4000, Grade 2
  • Meets ADA requirements
  • UL and cUL listed for 3 hour fire rating; conforms to ANSI/UL 10C
  • 1 year limited warranty
