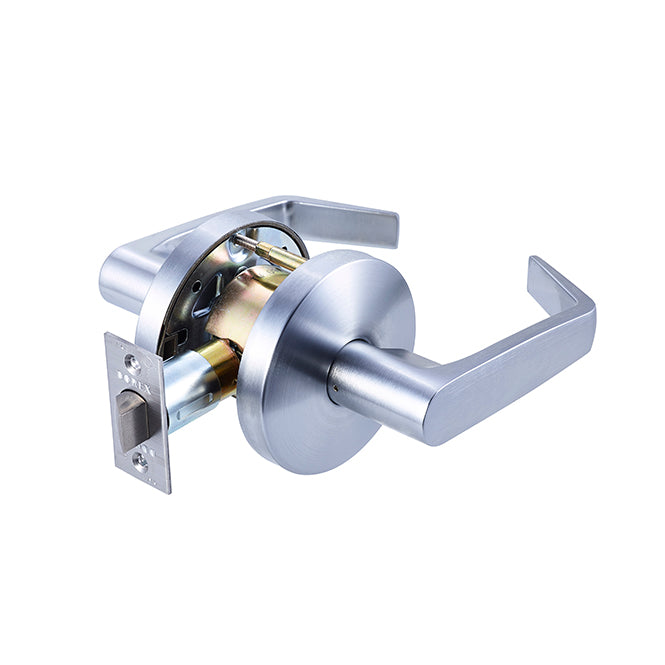

Dorex FH10 C26D Medium-Duty Passage Lever – Satin Chrome

FH10 C26D

• Passage function suitable for non-locking applications
• Architectural quality for medium duty commercial applications
• High quality satin chrome finish
• For 1 3/8” to 1 3/4” door thickness
• 2 3/4” backset
• Optional backsets by special order: 2 3/8”,   3 3/4”, 5”
• Non-handed/field reversible
• Removable thru-bolt mounting posts
• Lever length is approximately 5 1/8”
• 3 5/16” rosette diameter
• 1/2” stainless steel latch throw
• Concealed mounting screws
• Conforms to ANSI/BHMA A156.2, series 4000, Grade 2
• Meets ADA requirements
• UL and cUL listed for 3 hour fire rating; conforms to ANSI/UL 10C
• 1 year limited warranty
