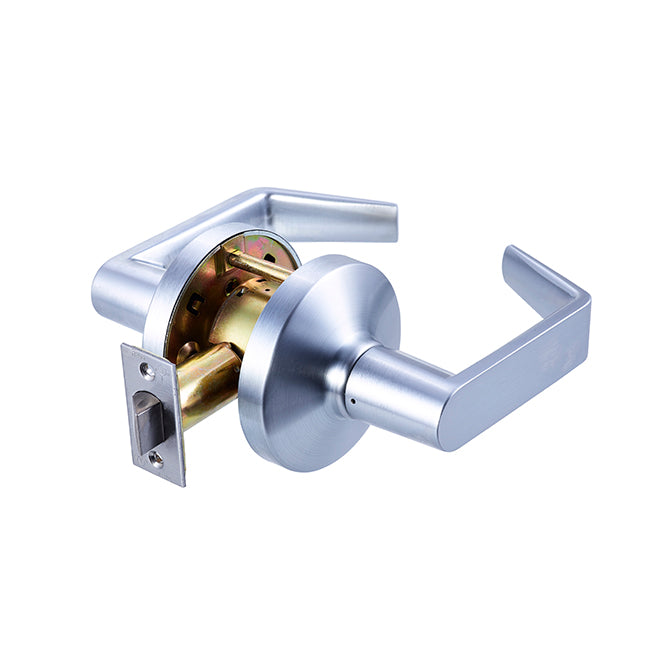

Dorex F1H10 C26D Heavy-Duty Passage Lever – Satin Chrome

Dorex F1H10 C26D Heavy-Duty Passage Lever – Satin Chrome

$219.90 CAD
$219.90 CAD
Sale Sold out
Taxes included. Shipping calculated at checkout.
F1H10 C26D
  • Passage function suitable for non-locking applications
  • Vandal resistant clutch lever
  • Architectural quality for heavy duty commercial applications
  • High quality satin chrome finish
  • For 1 3/8” to 2 1/4” door thickness
  • 2 3/4” backset
  • Optional backsets by special order: 2 3/8”,   3 3/4”, 5”
  • Non-handed/field reversible
  • Non-removable steel thru-bolt mounting posts
  • Lever length is approximately 5 1/8”
  • 3 1/2” rosette diameter
  • 1/2” stainless steel latch throw; optional 3/4” latch throw by special order
  • Concealed mounting screws
  • Conforms to ANSI/BHMA A156.2, series 4000, Grade 1
  • Meets ADA requirements
  • UL and cUL listed for 3 hour fire rating; conforms to ANSI/UL 10C
  • 5 year limited warranty

Dimensions

please contact us for more detail.
