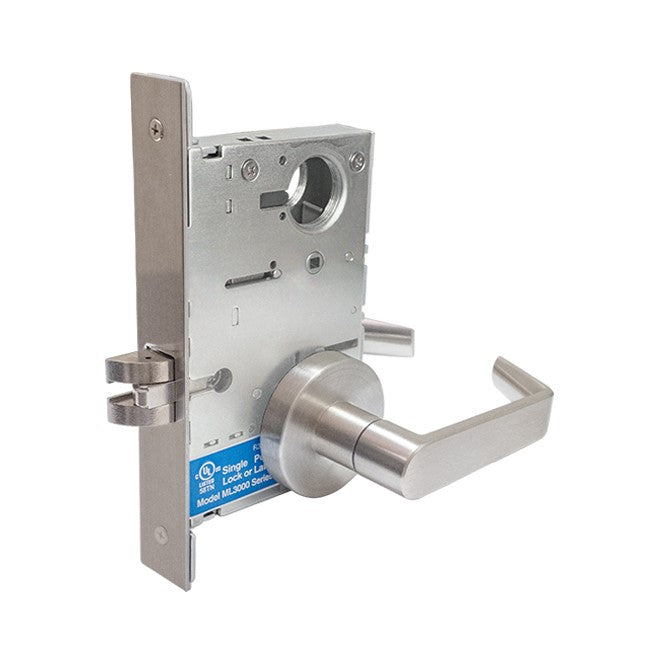

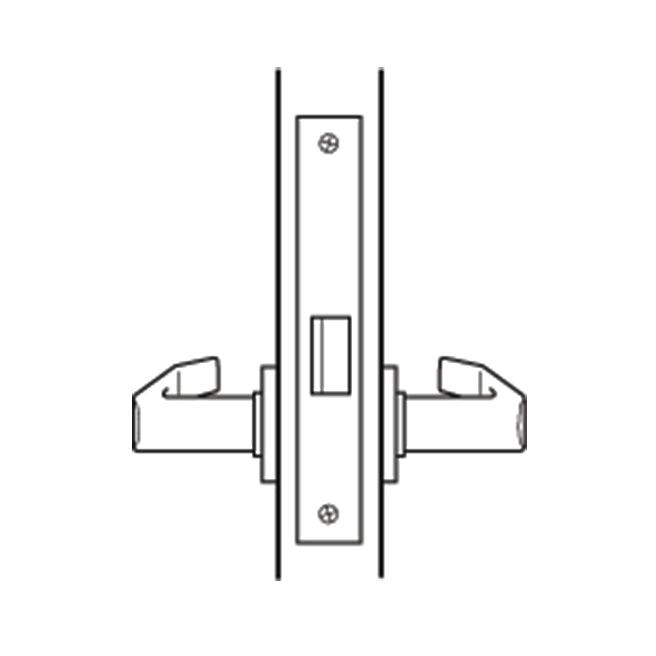

Dorex DM10 Heavy-Duty Mortise Lockset – Passage Function – Satin Chrome

Dorex DM10 Heavy-Duty Mortise Lockset – Passage Function – Satin Chrome

$383.10 CAD
$383.10 CAD
Sale Sold out
Taxes included. Shipping calculated at checkout.
DM10 - SS 26D
  • Passage function suitable for non-locking applications
  • Architectural quality for heavy duty commercial and institutional applications
  • High quality satin chrome finish
  • For 1 3/4” – 2” door thickness – conversion kit available for doors up to 2 1/4” thick
  • 2 3/4” backset
  • Handed/field reversible
  • Thru-bolt mounting sectional trim with concealed mounting screws
  • 2 7/16” diameter rose
  • Lever length is approximately 5”
  • Brass two-piece latchbolt with 3/4” throw
  • Single action egress
  • Keyed functions include 6-pin mortise cylinder with Schlage “C” keyway
  • ASA strike plate and plastic dustbox included
  • Adjustable faceplate for beveled doors
  • Conforms to ANSI/BHMA A156.13, Grade 1
  • Meets ADA requirements
  • Meets UL 10C positive pressure requirements
  • UL and cUL listed for 3 hours fire rating
  • 5 year limited warranty

Dimensions

please contact us for more detail.

Materials
