ABH A570HD Aluminum Continuous Geared Hinge – 95” – Full Surface Narrow Face – CLEAR ALUMINUM

A570HDC095

• This item is available for pick-up only at either our Newmarket Showroom or at the manufacturer distribution centre near Pearson Airport; however, this item can be shipped by special arrangement (at an extra cost)
• Full surface; ideal for narrow-faced frames
• Heavy duty
• Reversible
• Clear aluminum finish
• Limited quantities of anodized black are available
• 95” length (other lengths available: 79″, 83″, 85″, and 120″)

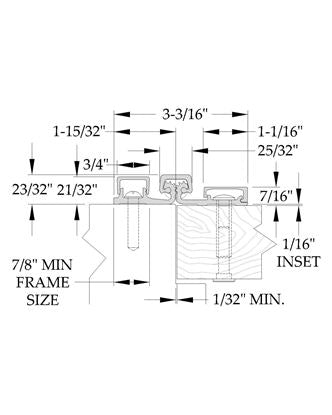

• 1/16” door inset
• 48″ maximum door width
• 450 lbs. maximum door weight
• Unit weight: 13 lbs.
• Fasteners included: 12-24 X 7/8″ undercut self drilling, thread forming tek machine screws and thru-bolts
• Fire Rating: approved for use on metal swinging type fire doors rated up to and including 90 minutes and wood swinging type fire doors rated up to and including 60 minutes
• Lifetime warranty
